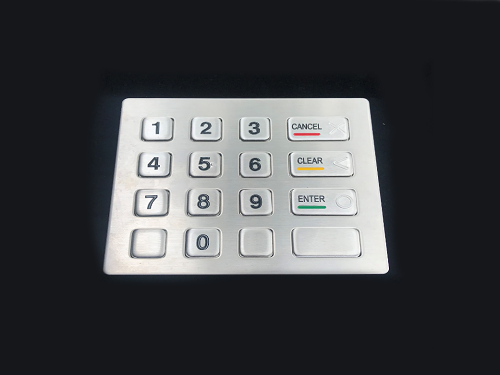

Product name: Metal keypad
Product P/N：GZB002010
Product dimension：116*97mm
Product Description: It is stainless steel keypad of waterproof and dustproof, adopt rubber
designing, and with digital keys and 6 function keys, the keys are compact layout and it with
0.5mm long-travel,. It is assembled from inside to outside, the total thickness is 6.5mm; It adopts
the design of whole stainless steel overlay and laser engraving, and with the precision tooling, the
surface treatment beautiful and magnificent.
Product Application：
It mainly applied to various kinds of place of no regulation or semi-regulation information terminal .
for example Internet terminal,, University, Market , Hotel, Bank, Airport, Station, and another
information station of public place , Automatic ticket rendor, Gas station, Automatic Teller Machine( ATM), Public telephone ect.
Mainly Features：
1. Both of stainless steel panel and keys can good protect to avoid the deter vandals, even under
bad condition, it still can work well.
2. After the keypad is installed, it is looks beautiful and generous, plug and play.
3. Metal keypad surface is good to guard from thieves, and it is difficult to bending and be out, so it
can prevent key off and damage.
4. We can customer made all kinds of keypad with multiple languages as per the custom.
5. It is easy for installation, supply Ps2,USB and R232 interface mode to contact the host computer for keypad operation.
6.It is easy for installation, supply PS2,USB interface mode to contact the host computer for keypad operation
Mechanical Specifications：
1. Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.
2. Design of the key: Key with character of laser engraving and corrosion.
3. Key Size: 13.8mm*13.8mm，13.8*27.8mm
4. Key`s travel ：0.5mm
5. Lifetime of the key: Operating more than 2Million per key.
6. Strength of the key: 1.2N+/-0.1N (Contact with strength)
7. Front Panel: import printing brush SUS304 stainless steel with 1.5mm thickness.
Electric parameter：
1. Operating current: Direct current+5V/-5%
2 working current：20mA
3 Expected life-time：>2yer
4. Button switch technology: imported plated gilded metal dome
5. Interface Technology：USB，PS2，R232，8PIN
6. Operating System：DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
Environmental adaptation：
1. Operating Temperature：-20℃to+60℃
2. Storage Temperature：-30℃to+70℃
3. Relative Humidity: 30-90%
