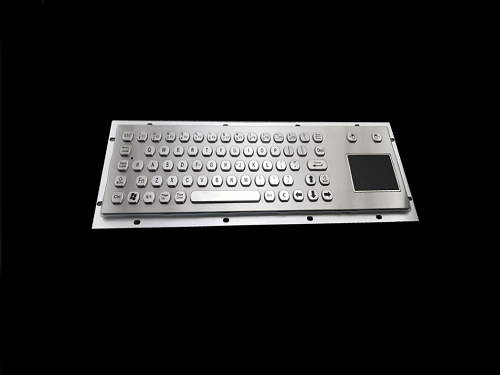

Product Name: PC touchpad keyboard
Product model: C003013
Product size: 392*110mm
Product Description: Anti-riot stainless steel keyboard, 68 keys, compact layout of buttons, 2.0mm long button stroke, the entire thickness of the keyboard is 24mm; front stainless steel panel type side mounting nails. It adopts all-stainless steel panel and button design, the mould is matched with precise and accurate, and the surface treatment is beautiful and generous.
Mainly used in various unsupervised or semi-regulated information terminals, such as Internet terminals, universities, shopping malls, hotels, banks, airports, stations and other public information kiosks, ticket vending machines, gas stations, bank tellers ( Automatic deposit/detail machine), public telephone, etc.
1. Stainless steel panels and buttons can prevent intentional damage, and the product has good anti-riot, anti-corrosion and waterproof properties. Especially in harsh environments, it can also be operated very well.
2. IP65 waterproof and dustproof protection design, the installed keyboard can achieve the surface waterproof and dustproof effect, and prevent liquid or gray scale from penetrating into the keyboard.
3. The keyboard uses a long-stroke convex button with good tactile sensation, which enables users to achieve noise-free, fast and accurate data input.
4. User-friendly key layout, the surface of the button is laser engraved to etch the pattern and characters with moderate depth for better operation, and the long-term use will not cause the characters to fall off or be worn.
5. The metal keyboard surface buttons are very good for preventing smashing, and are not easy to bend and detach, thus preventing the keys from falling off and being damaged.
7. Customize any key surface in multiple languages to suit different countries and various custom styles.
8. Simple installation, PS2, USB interface mode is provided to connect the host for normal keyboard operation.
1. Button: 68 buttons, imported printed brushed SUS304 stainless steel.
2. Button design: square convex button, or square flat button, laser engraving and then etching patterns and characters, and filling in high quality and durable environmentally friendly imported ink
3. The size of the button: ordinary button: 13.8mm * 13.8mm,
4. Button stroke: 2.0mm
5. Key life: operate more than 5 million times per key.
6. Button strength: 1.2N +/- 0.1N (contact force)
7. Touchpad material: 1.3mm thick PCB with polyester film
8. Mutual capacitance sensing:
X/Y axis position detection resolution: 40counts/mm
Trackball resolution: X>200dpi; Y>190dpi (optional mechanical or photo sphere)
x/y position report: relative
Sensing range: 65*49mm
Touch tracking speed: >1.016 m / sec
Power supply voltage: 5V ± 0.25V
Rated current: 17 mA
9. Rear panel: 3.0mm thick brushed aluminum plate
10. Front panel: imported printed brushed SUS304 stainless steel, 1.5mm thick
11. Weight: 1.5kg
12. Size: 330*100mm
1. Working voltage: DC +5V +/- 5%
2. Working current: 10mA
3. Electromagnetic radiation: EN50081-1
4. Electromagnetic immunity: EN50082-1
5. Electromagnetic compatibility standards: 89/336/EEC EN55022:1988+A1:2003 EN55024:1988+A1:2001+A2:2003
6. Expected life: >5 years
7. Key switch technology: conductive carbon particles / gold-plated PCB
8. Interface technology: PS2, USB optional
9. Operating system: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
1. Working temperature: 0°Cto+60°C
2. Storage temperature: -25°Cto+70°C
3. Relative humidity: 30-90% (no condensation)
4. Atmospheric pressure: 60-106Kpa
5. Salt spray test: 96 hours, IEC60512-6
6.40 °C high humidity test: 21 days, IEC60512-6
7. 85 ° C high drying test: 10 days, IEC60512-6
1. Dustproof and waterproof: IP65 (surface)
2. Riot rating: IK09
3. Button life 5 million operations / per button
4. Average failure time > 50,000 hours
5. Average repair time <30 minutes
Special button description:
This keyboard is used in the same way as a normal PC keyboard. The FN function key can be used in combination with the F1-F12 key. Only htp:// http:// , ftp. www. , @ , .com The four buttons are used when they are online, so they need to be used in English.
The specific use method is as follows: switch the input method to the English state EN, press htp:// http:// , ftp. www. , @ , .com to get the corresponding key value. After use, it can be washed with water, disinfectant, alcohol or other cleaning solution.
