GZ-H001023

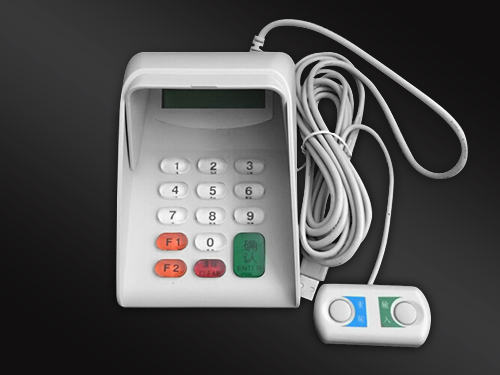

产品名称：Numeric keyboard
产品P / N：GZ-H001023
产品尺寸：150*102*95毫米

产品描述: 银行加密小数字键盘解决了由于终端各种原因造成的一系列软硬件不兼容问题 ,驱动程序接口与银行不一致. 这个数字键盘可以连接电脑 ,STAR系列终端, GW系列终端, WYSE系列终端 , 新世界航站楼, 国光终端, Haiwei terminal ,智臻终端等.

应用: Bank Main function: Keyboard with screen,voice control box, 语音提示, USB interface.

Switch introduction:
SW1 choose main terminal interface
ON: AT interface
关闭: ZT或终端接口
SW2 choose LCD interface
ON:input encryption display figures
关闭: input encryption display”*”
SW3 Choose’clear’key figure
ON: send a ’clear’
关闭: send 6’clear’
SW4: choose terminal type, generally it is designed by manufacturer

安装：
1. Pull out main engine or terminal big keyboard , plug in J1 interface.
2. J2 interface plug in orginal main engine or terminal keyboard interface.
3. Paste the encryption keyboard controller on top right corner of the big keyboard.
4. 按下 (enter)key of the controller to open encryption keyboard, then you will hear the
voice” hello, please enter your password” , press controller(reenter)键, then open encryption, you
will hear”please enter your password again”.
5.After finish entering encryption,please press”enter”or no pressing key in within 15 秒,then encryption keyboard will enter automatically, and close encryption keyboard
